Use of a domain-specific language

The third point could certainly have been countered for quite a while with more hardware. But clarity and usability are also fundamental requirements for a system, and so the team came up with the idea of giving the employees who are responsible for maintaining the exports to the individual partners a different approach.

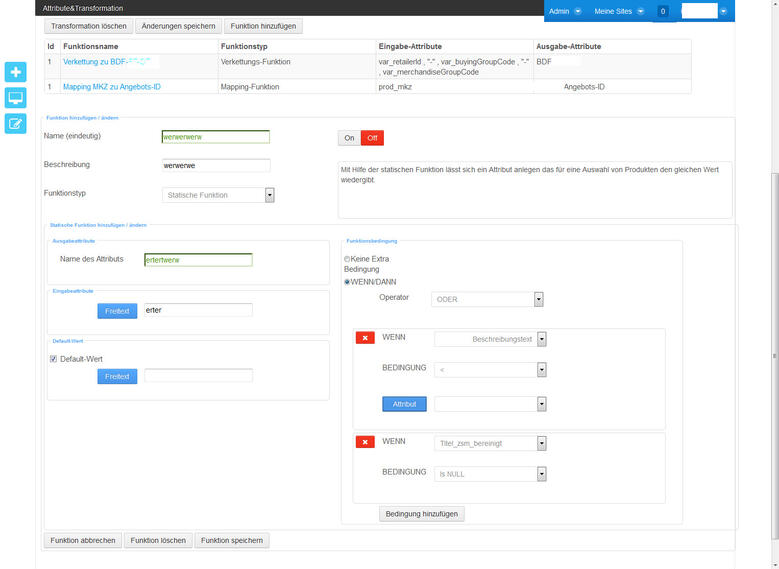

Here is an example of function creation according to the old system. For each individual step in the transformation, a separate function must be created, saved, and then linked to the other functions using input and output attributes. Each of these actions in turn requires roundtrips to the server for saving and editing and picking the created attributes for the next step.

As a solution, the team proposed a domain-specific language (DSL) that would enable the department to transform the data in a clear editor. After initial preliminary considerations, we decided to present the idea to the department at an early stage in order to obtain feedback.

The initial skepticism there, when it came to using something like a programming language, we countered by pointing out that the things they were already doing there with Excel on a daily basis went far beyond simple programming. And we had no doubt that they could handle it.

After some preliminary considerations, the decision was made to implement it with Groovy, because custom parsers can be created very easily here and it integrates very well with the rest of the system, which works in the JVM.

In the frontend, CodeMirror is used, a flexible code editor written in JavaScript that can be easily configured and extended. It offers code completion, syntax highlighting and syntax errors can be easily marked in the edited code and provided with a meaningful error message.

For the computation of the functions these are first of all precompiled and bound for the execution at the respective product to a new context, in which all variables are available, which need them for the computation. Each DSL script returns exactly one result.

The DSL scripts now use the control structures that Groovy also already provides, such as if, else, etc. Except for string and arithmetic operations, all commands and libraries that are not required are blacklisted and thus not available in the first place. Further own DSL functions are defined, which are technically necessary for the transformation of the data, like GREATER_THAN, EXTRACT_ALL, SUBLIST, GET_LIST_ITEM, MATCHES, REPLACE , etc.. These are based on the notation of the Excel macro functions by name.

The functions written in the DSL are now passed an object for processing, in which all relevant information about a product is stored. The information can be accessed in the scripts normally via dot notation (Bspattr.var_descriptiontouse the description of the product).

The DSL functions within the script automatically use the result of the previous function as an input value to itself. Only in cases where this is not desired, either a constant is defined, or a value from the passed object with the product attributes is used. This increases the readability and clarifies the program flow.

CONCAT("Hello ", "World") // "Hello World" will be the current state REPLACE("Hello", "Moin") // "Moin World".

Within a script all necessary transformations are now performed to create the target attribute. Further intermediate steps are no longer necessary. For efficiency in processing, the Groovy shell object is reused and the functions are kept compiled. Thus, only the context must be passed and the result must be retrieved.

For example, a DSL script could look like this:

// Does the product have a name? if (NOT_EMPTY(attr.var_name)){ // "Testmarke® Notebook, Elektron™ // Replace all characters except word characters, whitespaces, periods and commas // The result of the REPLACE will be the current state REPLACE(attr.var_name, "[^\w\s,\.]", "") // "Testmarke Notebook, Elektron // Split the current state value at whitespaces into a list EXTRACT_ALL("[^\s]*") // "Testmarke|Notebook,|Elektron," // Take the first entry from the list GET_LIST_ITEM(FIRST) // Testmarke }

For both transparency of operations and flexibility, this represents a huge step forward. In addition, the language can grow along with the requirements of the business department on this foundation.
